Products > 96 Well Crystallization Plates > Art Robbins Instruments > Intelli-Plate 96-2 LVR

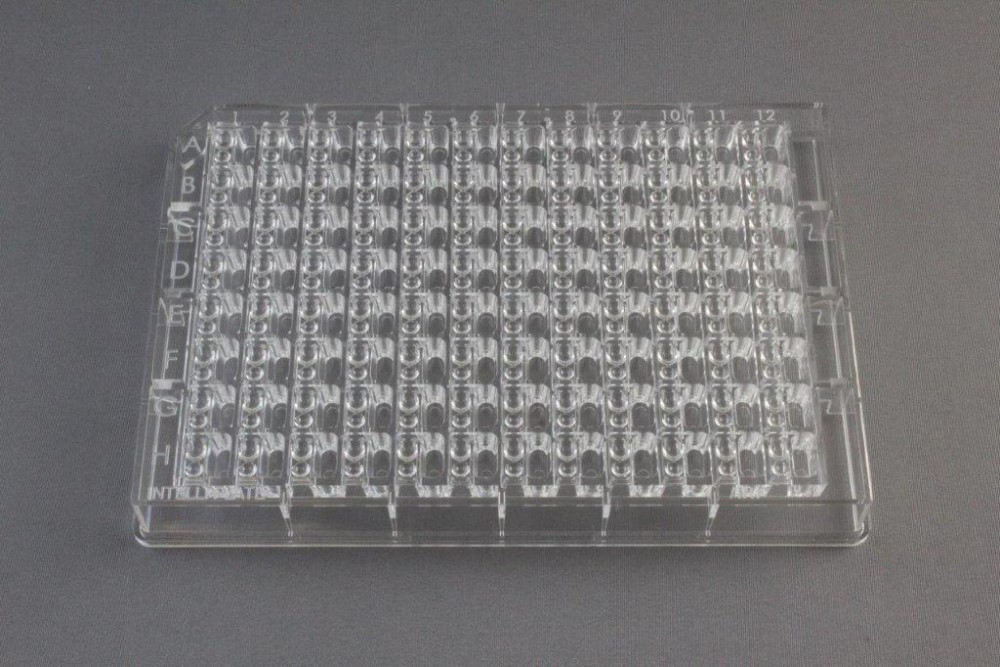

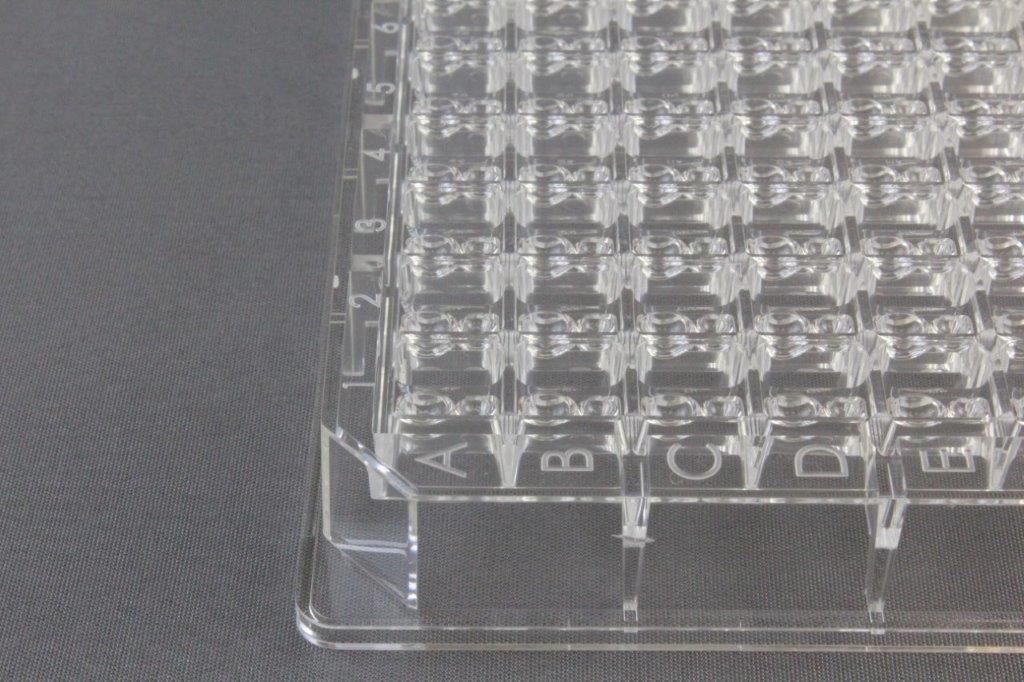

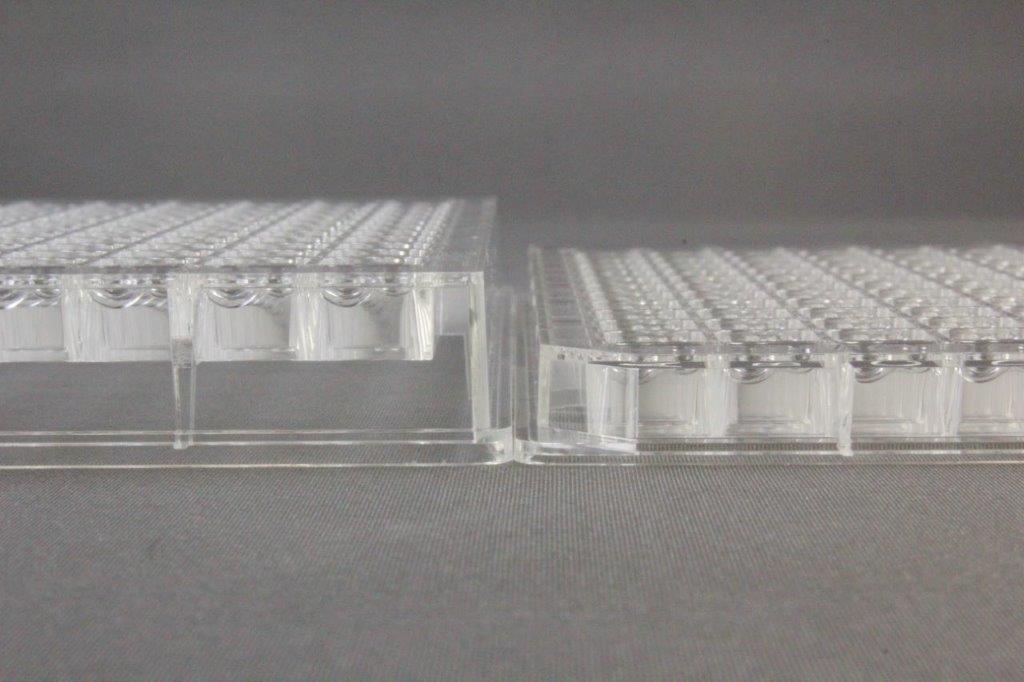

Intelli-Plate 96-2 LVR

Applications

  • Sitting Drop Crystallization

Features

  • SBS microplate footprint & standard well spacing
  • Optically clear wells provide for superior crystal imaging
  • Well layout makes crystal harvesting easier
  • 2 wells with small and large drop well
  • Rounded reservoir corners to prevent reservoir (MPD) creep
  • Plate Material: Cyclic Olefin
  • UV transmissible and low birefringence

Description

Art Robbins Instruments has developed the ideal family of plates for crystallography applications: the Intelli-Plate. All versions of the Intelli-Plate have the SBS microplate footprint and standard well spacing and are ideal for manual or automated processing.

The Intelli-Plate 96-2 LVR (Art Robbins 102-0001-00 Hampton Research HR3-143 and HR3-145) is a Low Volume Reservoir version of the Intelli-Plate 96-2 Original (Art Robbins 102-0011-00 Hampton Research HR3-297 and HR3-299).

Reservoir volume: 100 µl max.
Drop well volume: 1 µl max.
Plates are made of cyclic olefin.
UV transmissible and low birefringence.

Show More

Intelli-Plate 96-2 LVR

Click to Zoom In

Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR

Intelli-Plate 96-2 LVR

Click to Zoom In

Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR
Intelli-Plate 96-2 LVR

CAT NO

HR3-143

NAME

Intelli-Plate 96-2 LVR

DESCRIPTION

10 plate case

PRICE

$93.00

cart quote

CAT NO

HR3-145

NAME

Intelli-Plate 96-2 LVR

DESCRIPTION

40 plate case

PRICE

$343.00

cart quote

Support Material(s)

Intelli-Plate 96-2 LVR Intelli-Plate Details & ComparisonIntelli-Plate 96-2 LVR Plate Drawing Intelli-Plate 102-0001-00
