Products > 96 Well Crystallization Plates > Greiner Bio One > CrystalQuick™ 96 Well, Greiner 609820

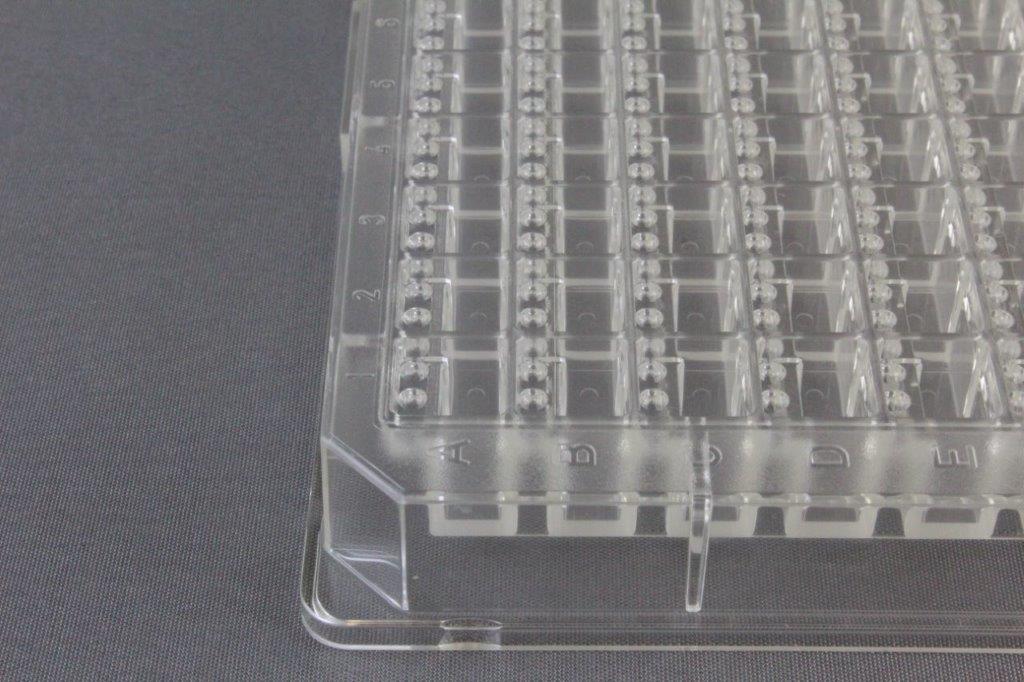

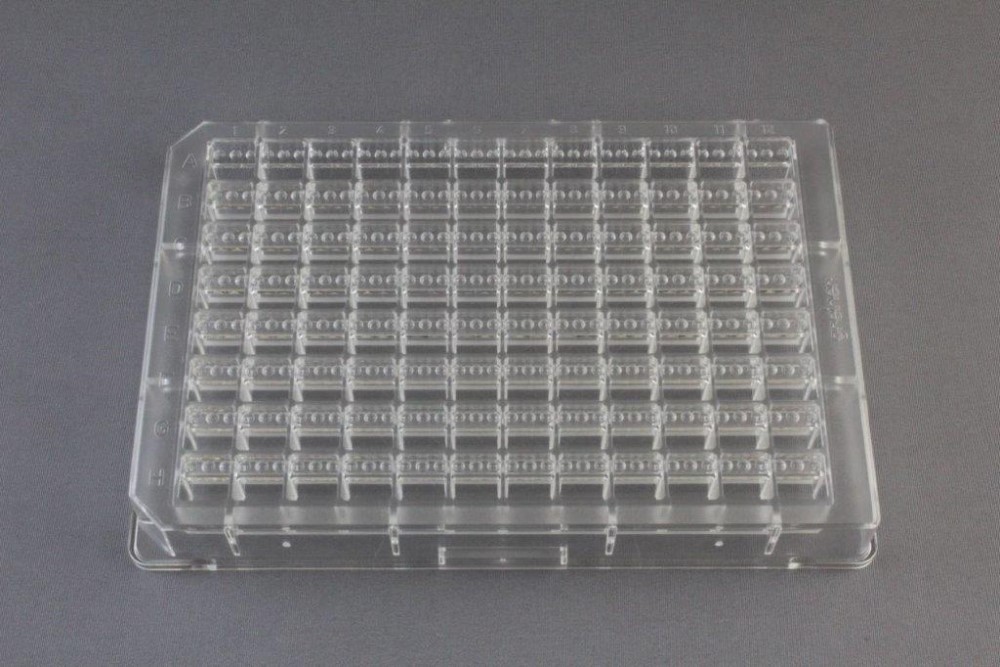

CrystalQuick™ 96 Well, Greiner 609820
Applications
- Sitting drop vapor diffusion crystallization
Features
- SBS specifications for high throughput crystallization and are fully compatible with robotic equipment
- 96 well sitting drop plate
- 3 drops/well
- Round drop wells
- 0.1 to 1.9 µL drop volume
- Standard profile (14.4 mm plate height)
- 320 µL maximum reagent volume
- Cyclic polyolefin low birefringence (LBR) material for polarized crystal imaging, exceptional transparency, high chemical resistance, and low water absorption
Description
The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).
To quickly compare features and select the Greiner CrystalQuick plate that best fits your needs please refer to the Greiner CrystalQuick Plate Summary pdf on this page.
Click to Zoom In
CAT NO
HR3-090
NAME
DESCRIPTION
2 µl round drop well, 3 drop well, LBR – 10 plate case
PRICE
$134.00
cart quote
CAT NO
HR3-091
NAME
DESCRIPTION
2 µl round drop well, 3 drop well, LBR – 40 plate case
PRICE
$534.00
cart quote
Support Material(s)
Greiner CrystalQuick Plate Summary Related Item(S)
- ClearSeal Film™ and Applicator
- Crystal Clear Sealing Tape
- Crystal Clear Sealing Film
References
1. Semi-automatic protein crystallization system that allows in situ observation of X-ray diffraction from crystals in the drop. N. Watanabe, H. Murai and I. Tanaka. Acta Cryst. (2002). D58, 1527-1530.
2. Practical implementations for improving the throughput in a manual crystallization setup. Jérôme Basquin , Christian Biertümpfel and Dietrich Suck. Journal of Applied Crystallography Volume 38 Page 568 – June 2005.
3. Crystallization and preliminary crystallographic analysis of human common-type acylphosphatase. Rachel C. Y. Yeung , Sonia Y. Lam and Kam-Bo Wong. Acta Crystallographica Section F, Volume 62 Page 80 – January 2006.
