CrystalEX Corning 3773
Applications
- Sitting drop crystallization
Features
- Protein well shape: Conical bottom
- Protein well volume: 10 µl
- Protein well dimensions: 3 mm
- Protein well depth: 3.1 mm
- Number of protein/reagent wells: 96/96
- Reagent well volume: 210 µl
- Recommended reagent working volume: 25-150 µl
- UV imaging compatible
Description

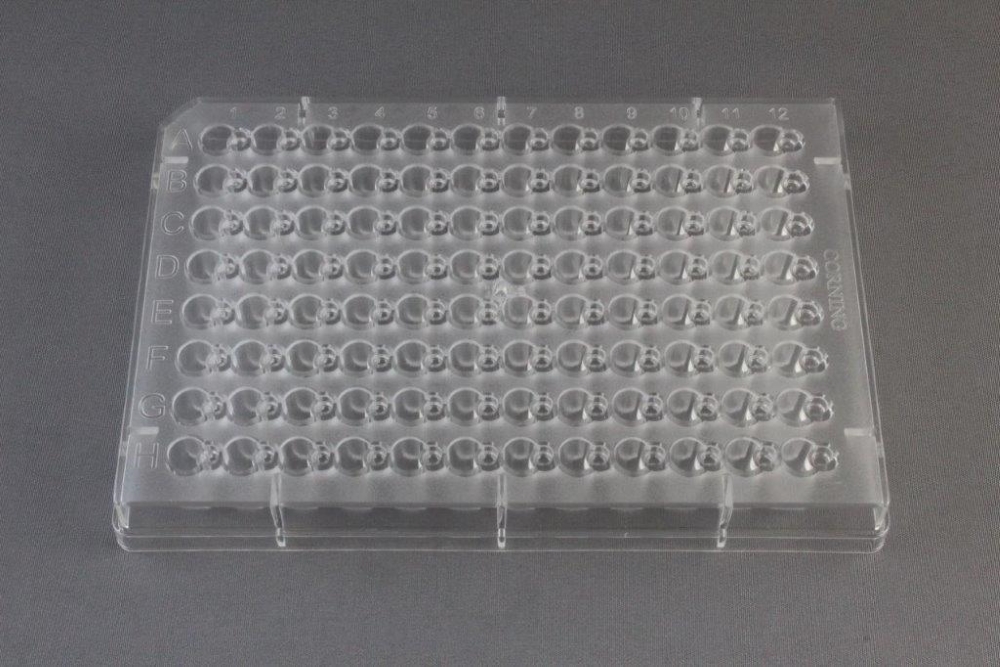

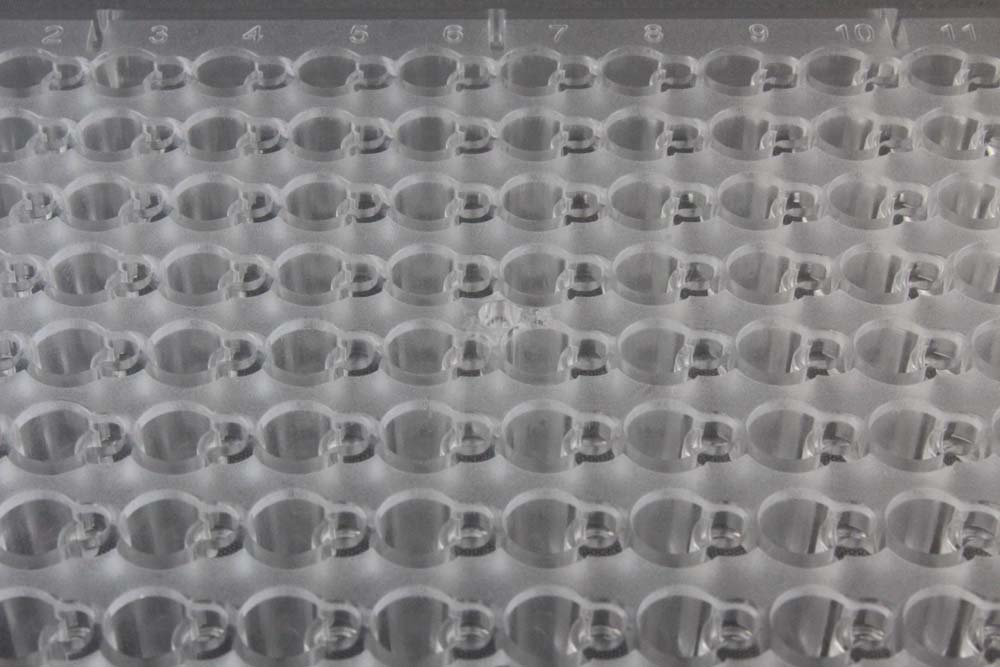

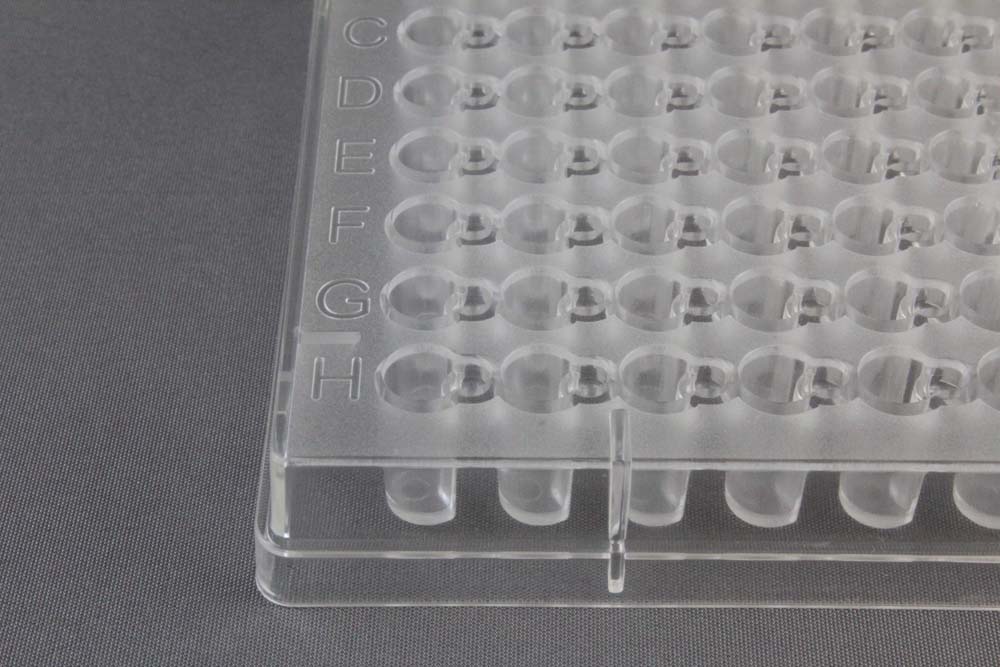

Corning® CrystalEX 96 Well Crystallization plates are designed for sitting drop vapor diffusion, high throughput protein crystallization.
The well surfaces are treated to be hydrophilic for improved drop mixing. Both versions are compatible with 8 and 12 channel manual pipetters, automated liquid handling work stations, and imaging systems. Both versions are manufactured from an advanced polymer with high resistance to commonly used protein crystallization reagents. The advanced polymer material provides for low-background polarization and high optical clarity so protein crystals may be viewed under polarized light with minimal background interference. Low water absorption of the polymer prevents loss of protein drop volume.
The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521)
Click to Zoom In
CAT NO
HR3-273
NAME
DESCRIPTION
10 plate case
PRICE
$135.00
cart quote
CAT NO
HR3-271
NAME
DESCRIPTION
40 plate case
PRICE
$488.00
cart quote
Related Item(S)
- ClearSeal Film™ and Applicator
- Crystal Clear Sealing Tape
- Crystal Clear Sealing Film
