Greiner ComboPlate and CrystalBridge
Applications
- Hanging and sitting drop crystallization
Features
- 24 reagent wells

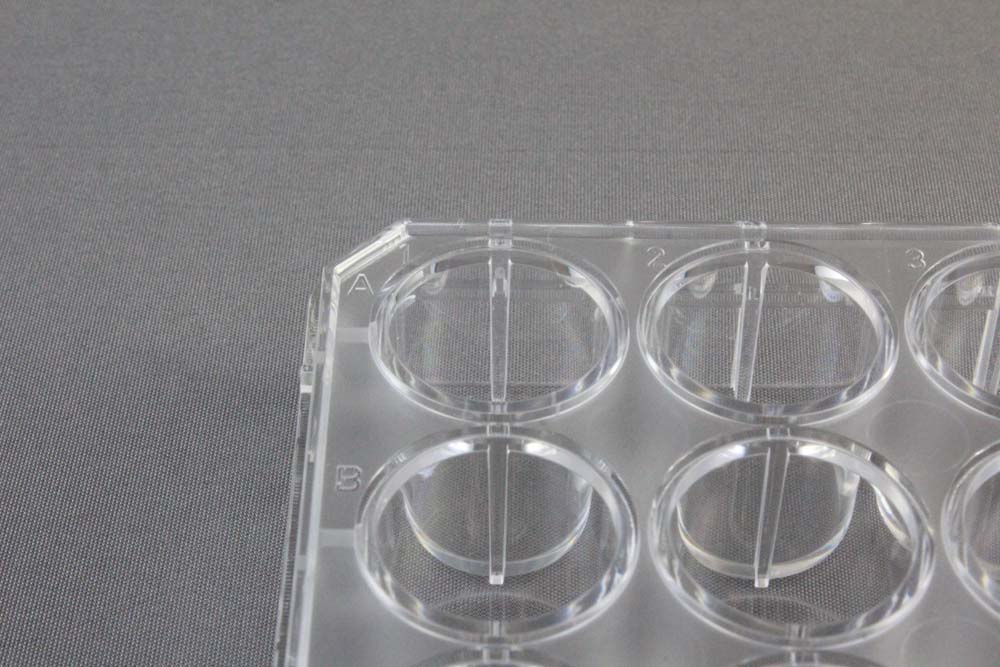

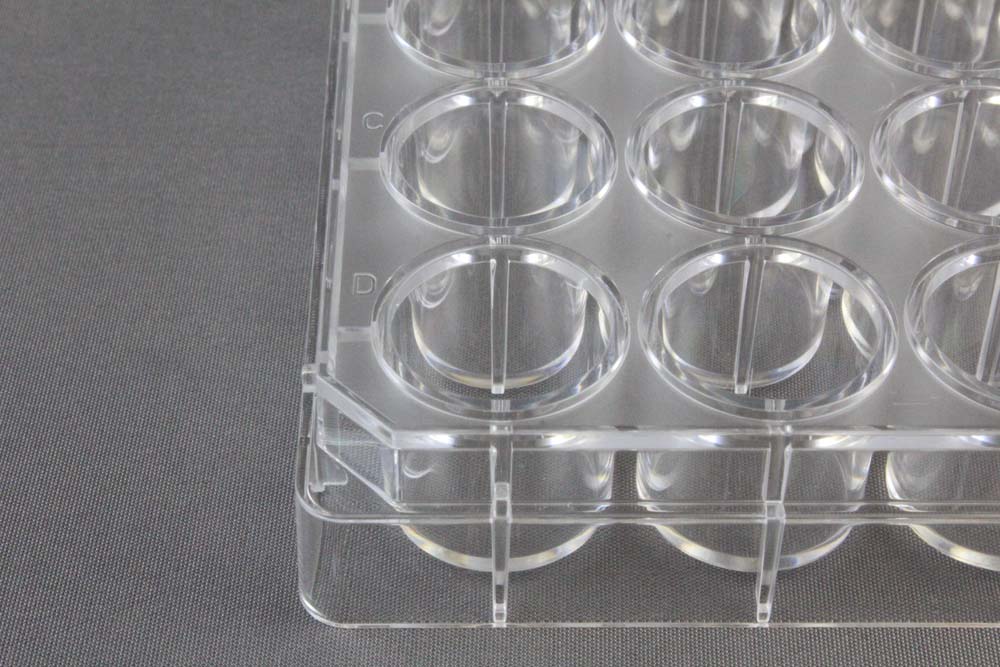

- ComboPlate has flat, raised rings about each well to minimize spills and cross contamination
- ComboPlate seals with 18 mm glass or plastic cover slides
- Slightly raised protection lid
- Sitting drop when used with CrystalBridge
Description

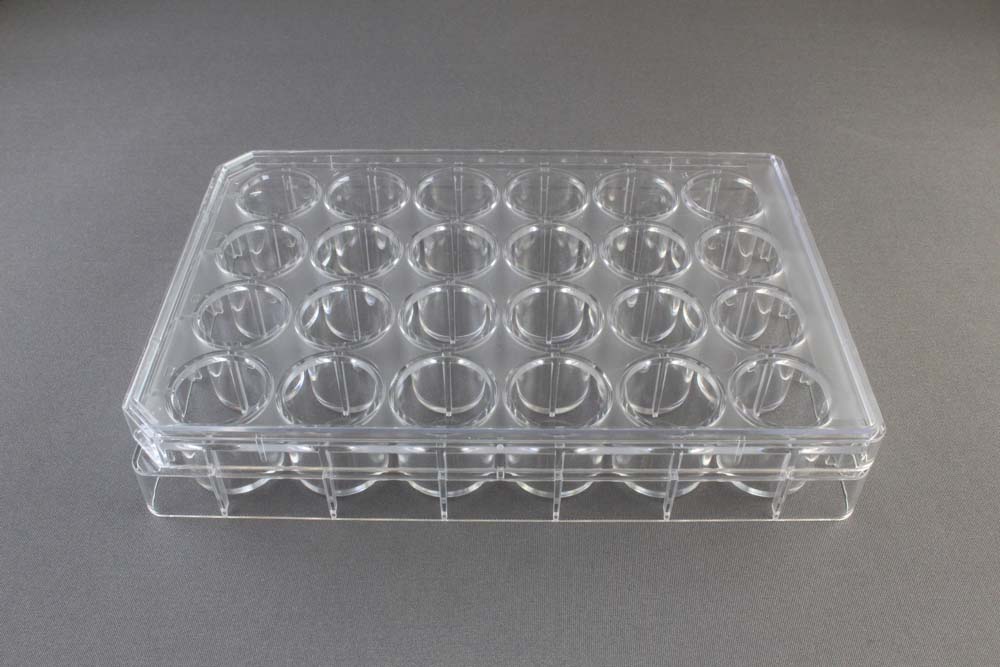

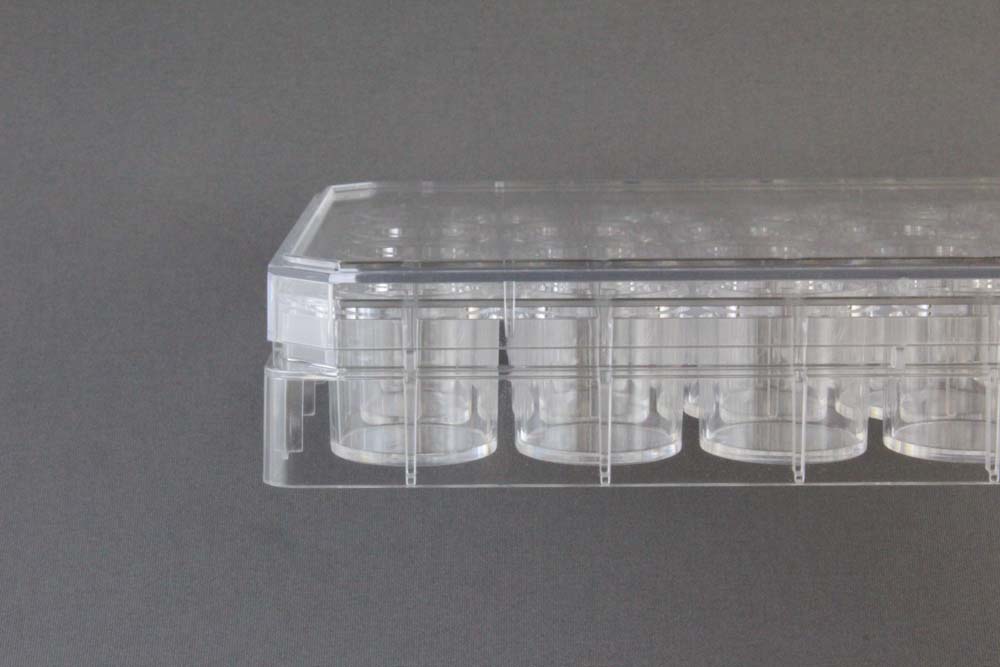

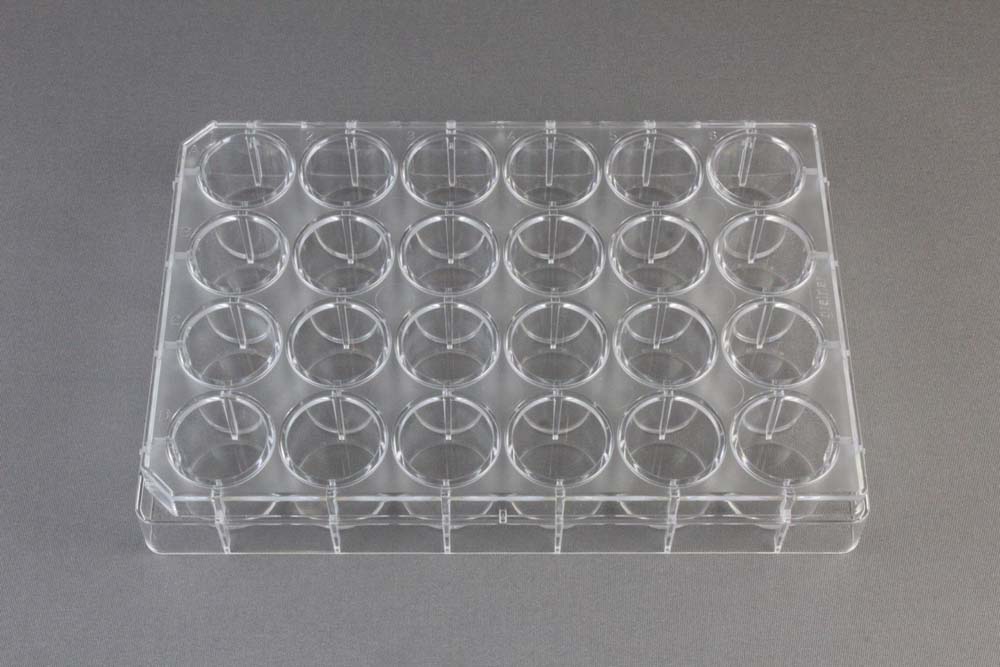

The Greiner ComboPlate is a 24 well plate with a raised cover in an SBS microplate footprint. The plate, supplied without sealant, can be sealed with an 18 mm diameter cover slide and sealant for hanging drop crystallization. Supplied with cover.
Dimensions: 127.76 mm x 85.48 mm x 19 mm
Well depth: 16.5 mm
Well capacity: 3.3 ml
Typical fill volume: 0.5 – 1.0 ml
When used with the Greiner CrystalBridge, the ComboPlate can be used for sitting drop crystallization and sealed with sealing film/tape or 18 mm diameter cover slide and sealant. The Greiner CrystalBridge is a polystyrene sitting drop pedestal with a concave drop well (45 µl capacity) and is designed specifically for the ComboPlate.
Click to Zoom In
CAT NO
HR3-200
NAME
DESCRIPTION
24 plate case
PRICE
$59.00
Temporarily Unavailable
More Available Soon!
CAT NO
HR3-150
NAME
DESCRIPTION
100 pack
PRICE
$82.00
cart quote
CAT NO
HR3-154
NAME
DESCRIPTION
400 pack
PRICE
$326.00
cart quote
Support Material(s)
Greiner ComboPlate Drawing
Greiner ComboPlate Datasheet
Greiner CrystalBridge Drawing Related Item(S)
- Dow Corning® 7 Release Compound Grease
- Dow Corning® Vacuum Grease
- OptiClear Plastic Cover Slides
- 18 mm Siliconized Glass Cover Slides
Hampton Research, first in crystallization since 1991, developing and delivering crystallization and optimization screens, reagents, plates, and other tools for the crystallization of biological macromolecules, including proteins (antibody), peptides (insulin), and nucleic acids (DNA).
