Glass Cover Slide Gizmo Dispenser

Applications

• Dispense circle or square cover slides for hanging drop crystallization

Features

• Dispense siliconized or plain cover slides
• Platform displays one to six cover slides at a time for 18 and 22 mm slides
• Black platform for slides allows one to see if drops are clear or precipitated
• Available for 12, 18 or 22 mm diameter cover slides for either original (0.22 mm) and thick (0.96 mm)
• Platform displays one to twelve cover slides at a time for 12 mm slides

Description

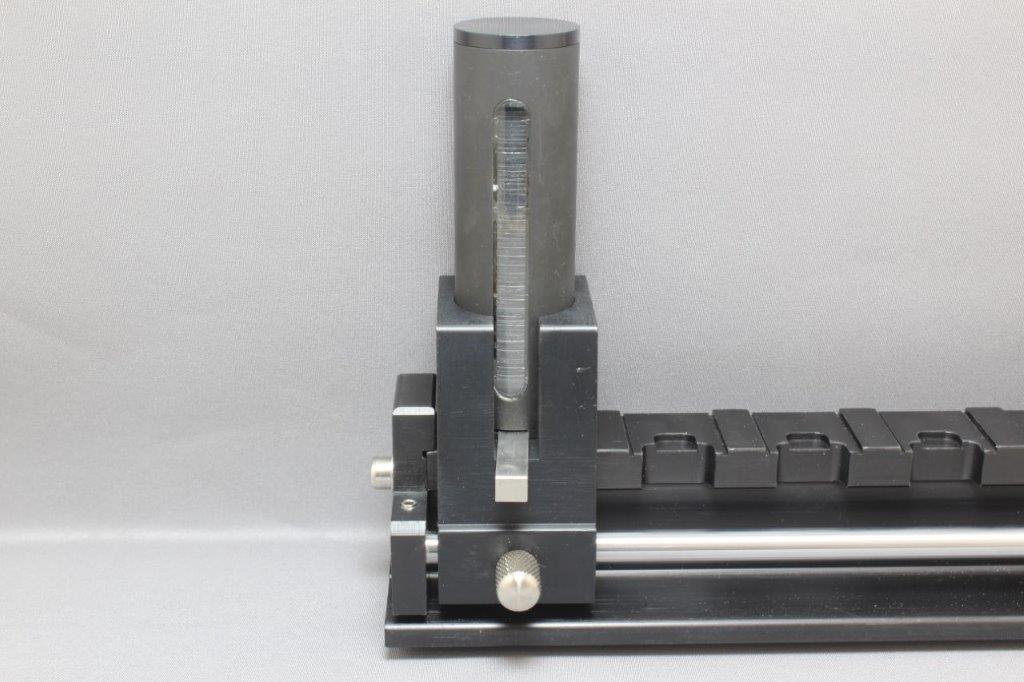

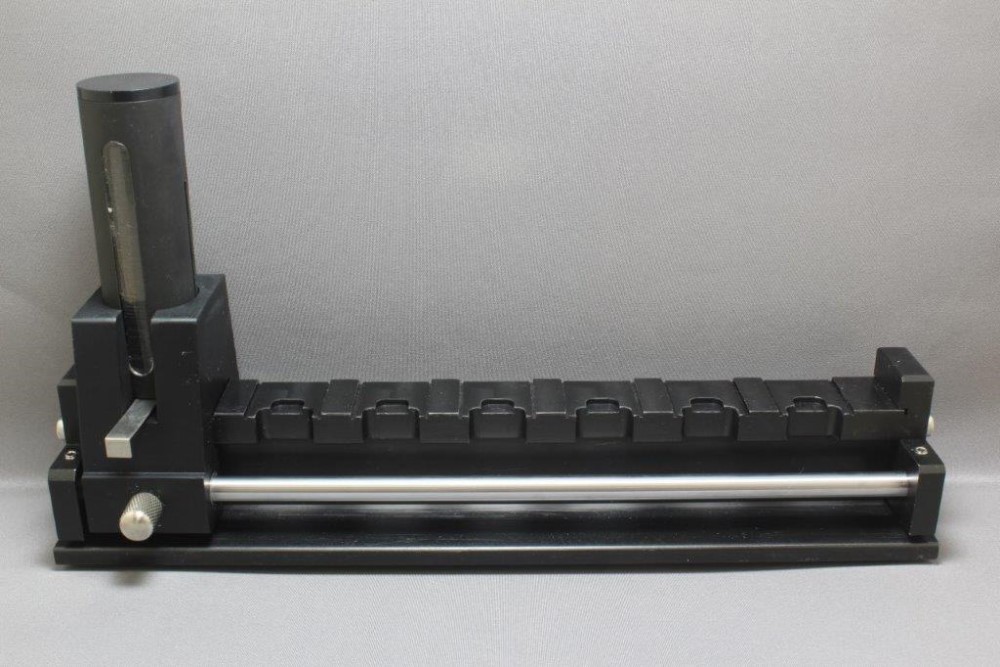

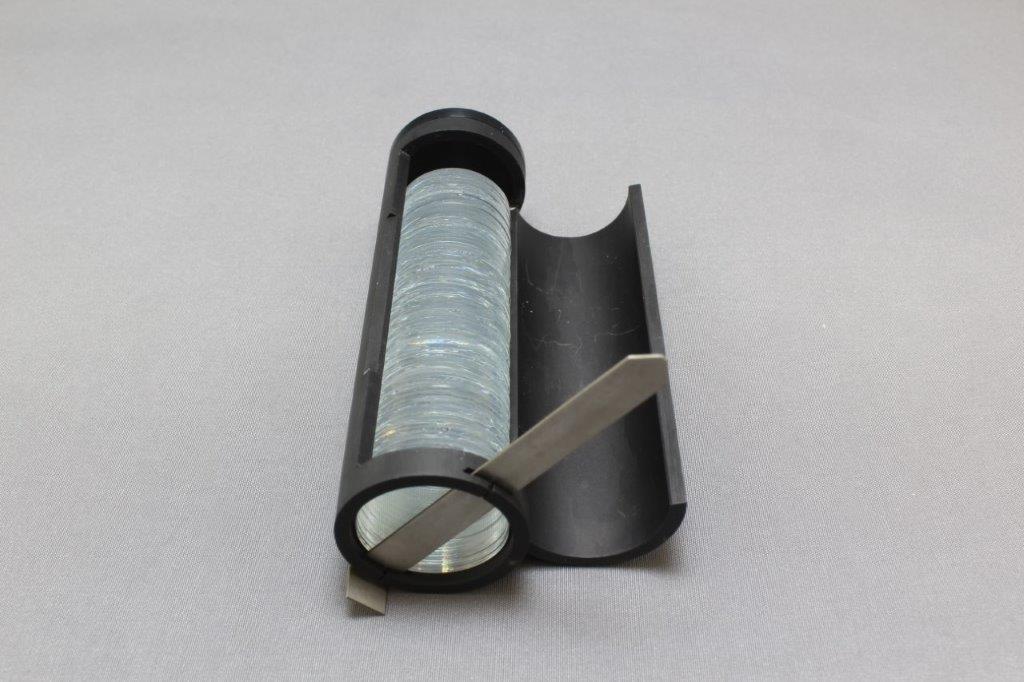

The Cover Slide Gizmo dispenses siliconized or plain slides for convenient drop building during hanging drop vapor diffusion crystallization. Load the cover slides into the dispenser. A clear plastic cover or sealed dispenser keeps slides clean. Slide the loaded dispenser along the platform and six cover slides are dispensed onto the platform. A black background on the platform makes for easy drop visualization as one builds the drop(s). Use finger or forceps to place the completed cover slides onto the crystallization plate.

CAT NO

HR8-167

NAME

DESCRIPTION

Dispenser for 12 x 0.22 mm circle cover slides

PRICE

$161.00

cart quote

CAT NO

HR8-168

NAME

DESCRIPTION

Dispenser for 12 x 0.96 mm circle cover slides

PRICE

$161.00

cart quote

CAT NO

HR8-169

NAME

DESCRIPTION

Dispenser for 18 x 0.22 mm circle cover slides

PRICE

$161.00

cart quote

CAT NO

HR8-170

NAME

DESCRIPTION

Dispenser for 18 x 0.96 mm circle cover slides

PRICE

$161.00

cart quote

CAT NO

HR8-162

NAME

DESCRIPTION

Dispenser for 22 x 0.22 mm circle cover slides

PRICE

$161.00

cart quote

CAT NO

HR8-163

NAME

DESCRIPTION

Dispenser for 22 x 0.96 mm Circle Cover Slides

PRICE

$161.00

Temporarily Unavailable
More Available Soon!

CAT NO

HR8-164

NAME

DESCRIPTION

Dispenser for 22 x 0.22 mm square cover slides

PRICE

$161.00

Temporarily Unavailable
More Available Soon!

CAT NO

HR8-165

NAME

DESCRIPTION

Dispenser for 22 x 0.96 mm square cover slides

PRICE

$161.00

cart quote

Support Material(s)

 HR8-167 12×0.22mm Circle Dispenser User Guide HR8-168 12x1mm Circle Dispenser User Guide HR8-169 18×0.22mm Circle Dispenser User Guide HR8-170 18x1mm Circle Dispenser User Guide HR8-162 22×0.22nn Circle Dispenser User Guide HR8-163 22x1mm Circle Dispenser User Guide HR8-164 22×0.22mm Square Dispenser User Guide HR8-165 22x1mm Square Dispenser User Guide

Related Item(S)

• 22 mm Siliconized Glass Cover Slides
• 18 mm Siliconized Glass Cover Slides
• 12 mm Siliconized Glass Cover Slides
